2003 Socata TB-21TC Trinidad Aircraft

Single Engine Propeller

$269,000

2003 Socata TB-21TC Trinidad Aircraft
Aircraft TypeSingle Engine Propeller
MakeSocata
ModelTB-21TC Trinidad
ConditionUsed Aircraft
Sale TypeFor Sale
CurrencyAU $
Price $269,000
LocationQueensland, Australia
Registration NoVH-MTD
Serial Number2179
Year Built2003
Total Time Airframe1732.41
Comments

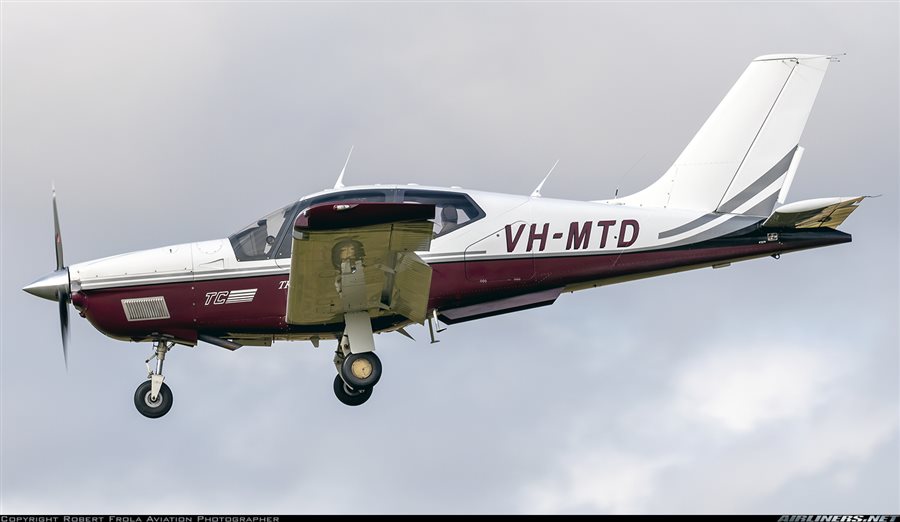

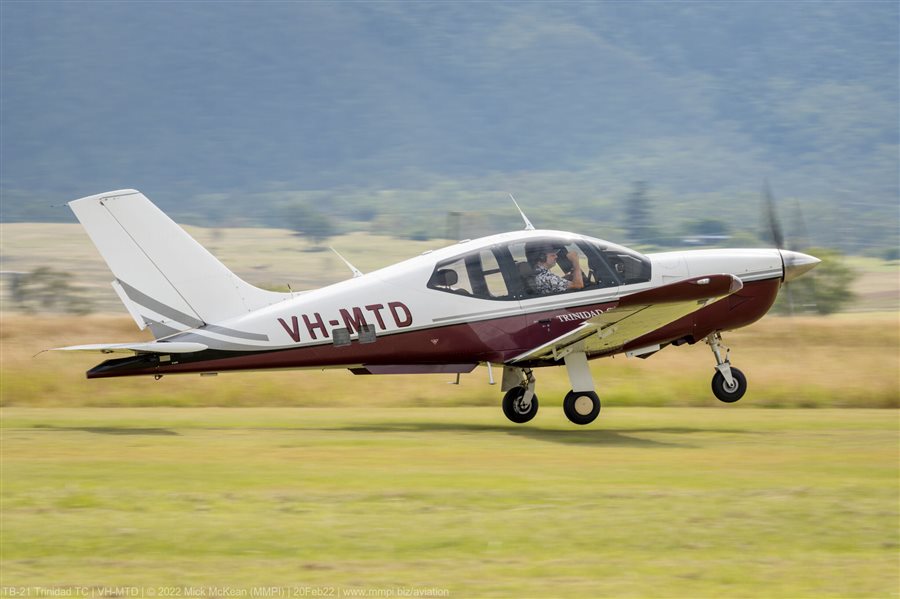

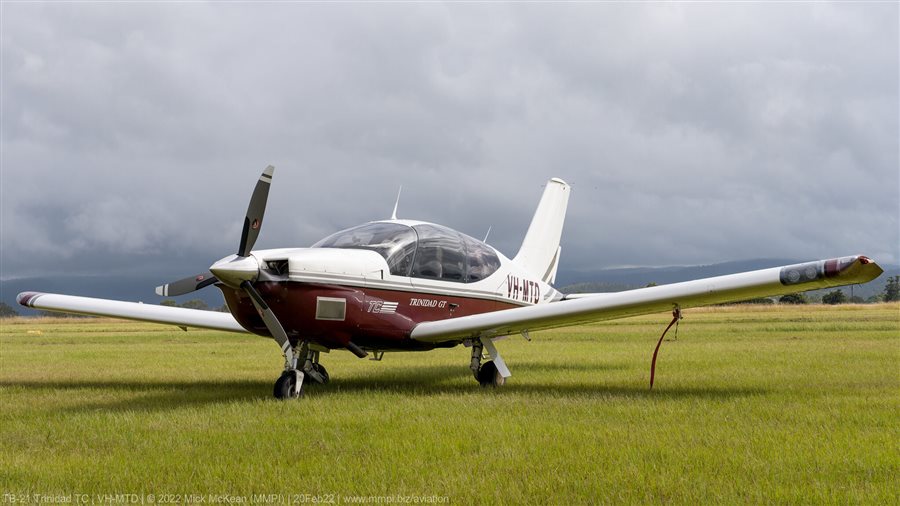

VH-MTD is an extremely well equipped late model GT Trinidad. This is one of the best opportunities on the market today to own a "good as new" turbocharged Trinidad.

In 2003 an Aurora Aviation Air-Conditioning system was fitted which provides high-volume conditioned air via 6 overhead outlets. In 2005 a JPI 700 six cylinder engine monitor was installed.

In 2005 Socata SB10-140 was completed by replacement of all three control gimbals with new, removing the 100hr inspection requirement found on most TBs.

The engine in VH-MTD was subject to Lycoming service bulletin SB 569A. In 2009 that SB and the associated AD was complied with by replacement of the crankshaft with new. At the same time the owner replaced all of the cylinders with all new ECI cylinder assemblies as well as an overhauled crankshaft and overhauled lifters.

In 2013 VH-MTD (N140MH) was imported to Australia and a Garmin 330 transponder was updated to comply with ADS-B out requirements and the engine was bulk stripped.

In 2022 the Garmin GNS530W was replaced with a Garmin fully reconditioned exchange unit

In 2024 the Garmin GNS430W was replaced with a Garmin GTN650xi GPS/ILS/NAV/COM.

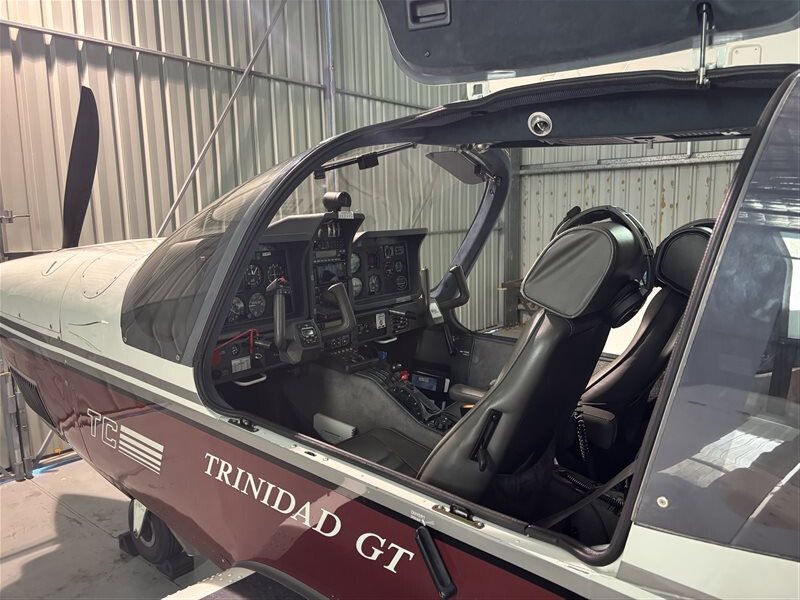

The major difference between the GT and the previous TB models was the addition of a new carbon-fiber based cockpit roof which has enabled Socata to significantly increase the size of the passenger compartment while retaining the same frontal and "wetted area" and hence cruise speed. In addition the GT version has a significantly larger baggage door as well as retracting footsteps.

VH-MTD is an extremely well equipped late model GT Trinidad. This is one of the best opportunities on the market today to own a "good as new" turbocharged Trinidad.

Engine Specifications

Lycoming TIO-540AB1AD - 250HP Turbocharged 1733 Hrs since new

Engine has undergone crankshaft replacement as mandated under Lycoming SB 569A.

JPI-700 6 Cylinder CHT/EGT Engine monitor

Shadin ADC 200 Fuel Flow air-data computer providing fuel flow, true airspeed, wind direction etc, coupled to the GTN 650xi and GNS 540W

De-Iced Propeller (TKS)

Fuel Low Level Warning

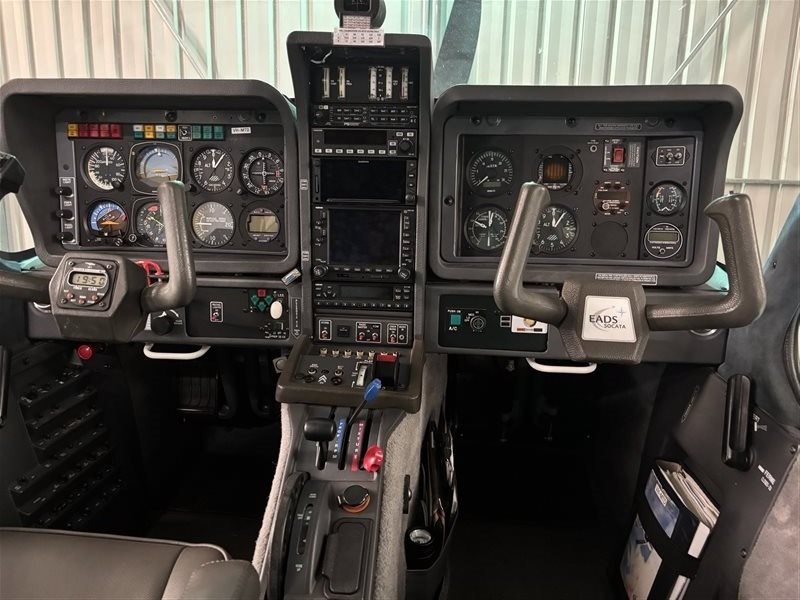

Avionics

King 256 Attitude Indicator with Flight Director

King KI525 HSI

Garmin GTN650xi WAAS IFR GPS/ILS/NAV/COM

Garmin GNS530W WAAS IFR GPS/ILS/NAV/COM

King KFC 225 digital two-axis autopilot with flight director and integrated Altitude/Vertical Speed pre-select plus integrated GPS steering (connected to GTN650xi).

Garmin GTX330ES Mode-S Transponder with ADS-B out

L3 WX500 Stormscope displayed on GTN650xi and GNS530W

Flightstream 210 connected to the GNS530W

PS Engineering PMA 8000B stereo audio panel with music and telephone input with bluetooth

Artex ME406 406Mz ELT

Astrotech LC-2 Digital Yoke mounted chronometer

Davtron 803 digital OAT

EI Volt/Ammeter (factory fitted)

Electric Backup Attitude Indicator

Second Altimeter

Interior

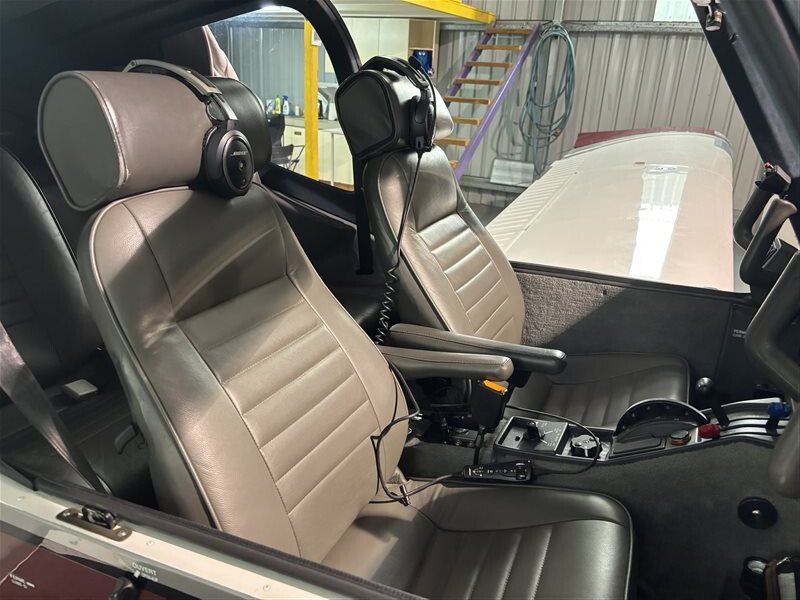

9+ Grey Leather interior

Built in oxygen system (64 cu. ft.)

4 seat belts

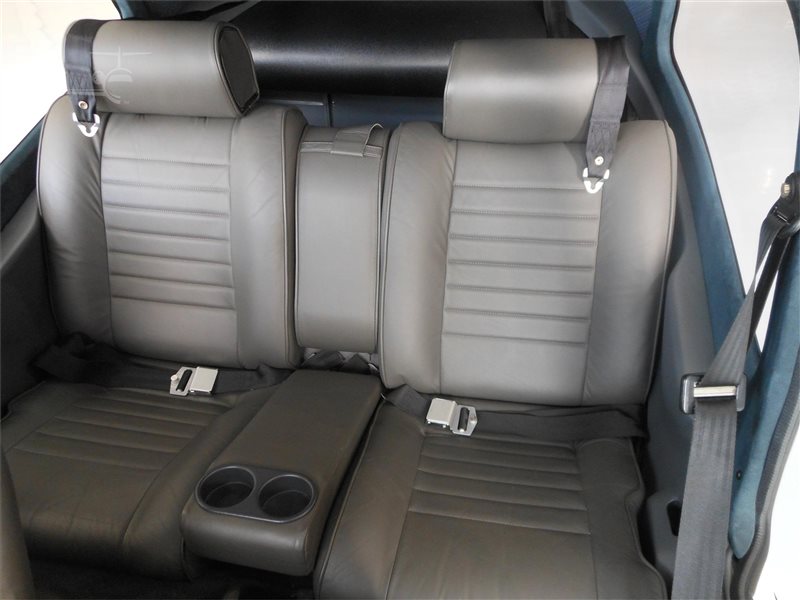

Optional rear center console

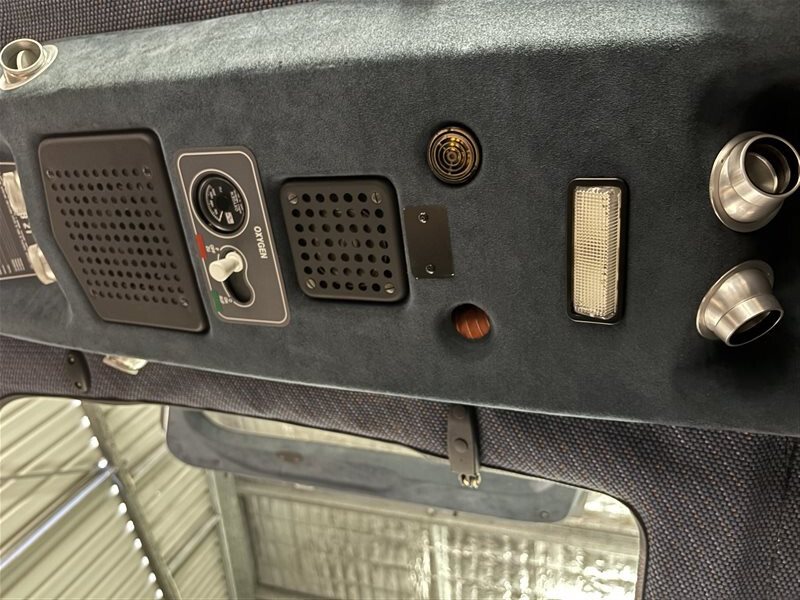

Aurora Aviation R134 Freon Air-Conditioning System with six roof mounted outlets

Exterior

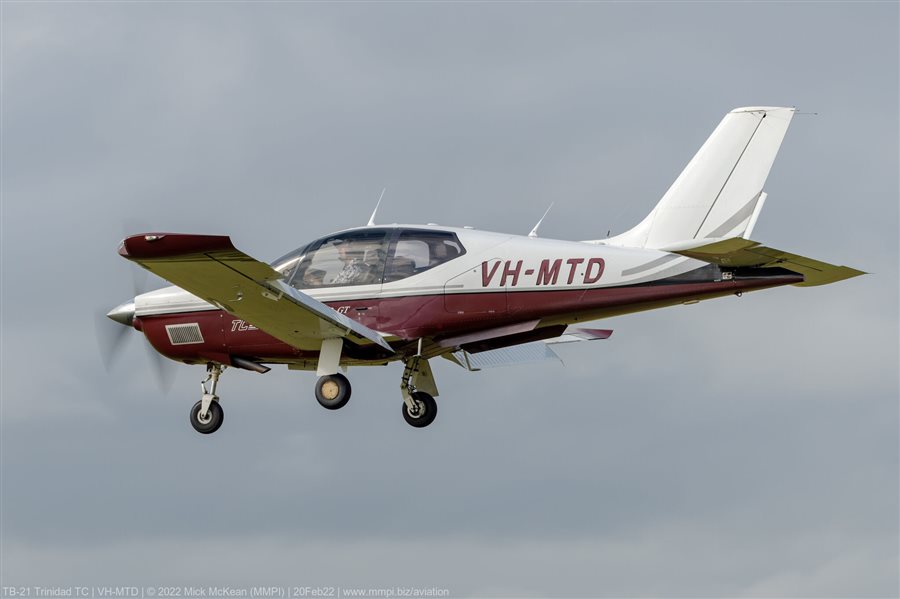

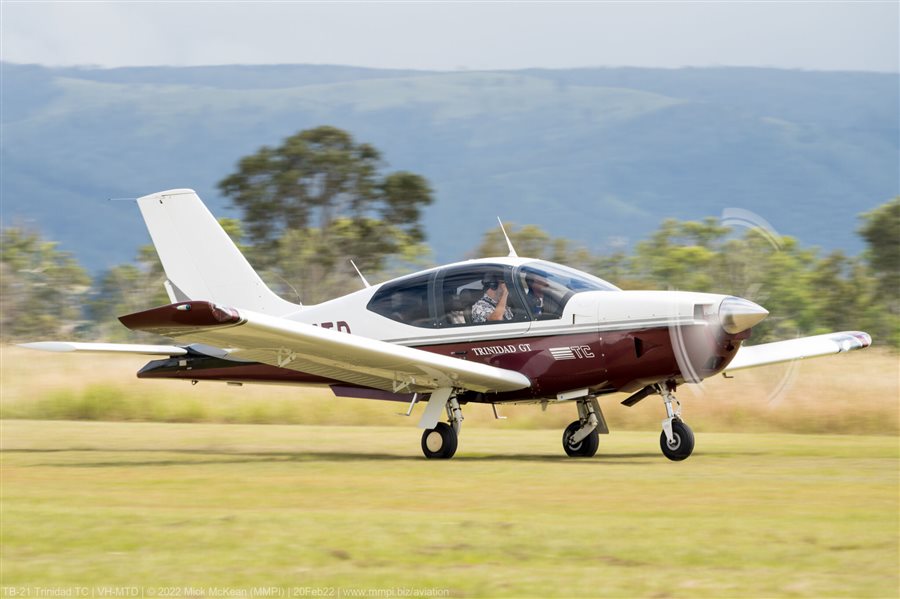

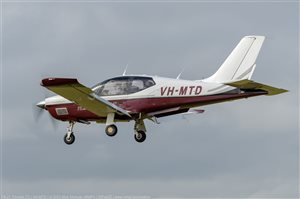

9 Maroon and White paintwork is in excellent condition. Aircraft is always hangared

Additional Features

No Damage History

All ADs and all Socata Mandatory SBs complied with.

Airframe, Propeller and Engine all have 1733 hours since new

2 Bose A20 noise cancelling headsets with airbus powered plugs included

Halon fire extinguisher

Hand mic

*PLEASE NOTE: Aircraft specifications are subject to verification by the purchaser. It is up to you as the purchaser to conduct your due diligence. Unless given to you in writing by the seller, no warranties are implied or given. Aircraft or parts may be withdrawn from sale at any time. If the price does not contain the notation that it is the total price, the price may or may not include costs such as Stamp Duty, Transfer fees, GST and other State or Federal charges. Please confirm price, fees, charges and features with the seller of the Aircraft or Part.
