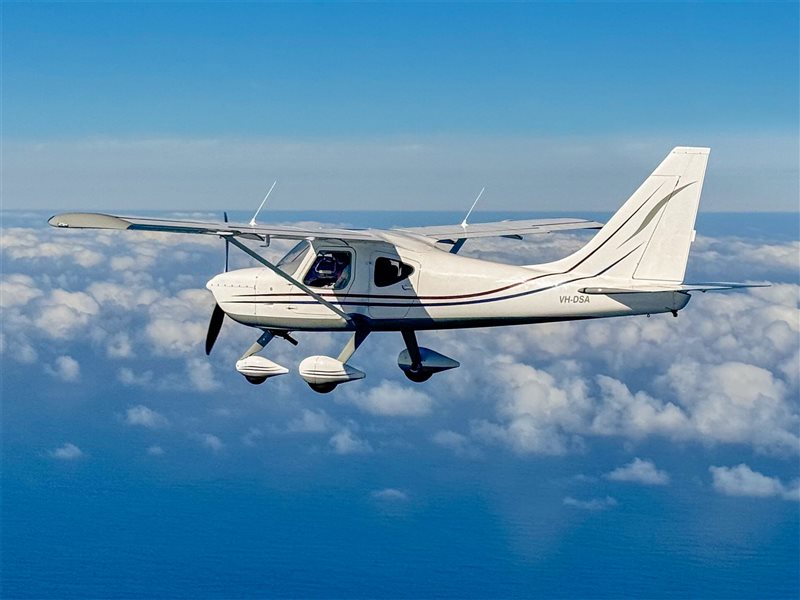

2012 Glasair Sportsman Aircraft

Single Engine Propeller

$473,000

2012 Glasair Sportsman Aircraft
Aircraft TypeSingle Engine Propeller
MakeGlasair
ModelSportsman
ConditionUsed
Sale TypeFor Sale
CurrencyAU $
Price $473,000
LocationNew South Wales, Australia
Registration NoVH-DSA
Serial Number7351
Year Built2012
Total Time Airframe467
Comments

Cruise: 138 knots

TTSN: 467 Tach Hours

210 HP Lycoming IO-390 Fuel Injected

Hartzell Constant Speed Prop

IFR with Garmin GTN 650 GPS NAV/COM

Superb cross country and short field performance

Massive load carrying capacity

Better than a Cessna 182 or 172

Always hangered

NIL Damage History

For full information go to: https://www.damonsmith.com/glasair-sportsman-for-s...

Sale price in Australia is subject to 10% GST

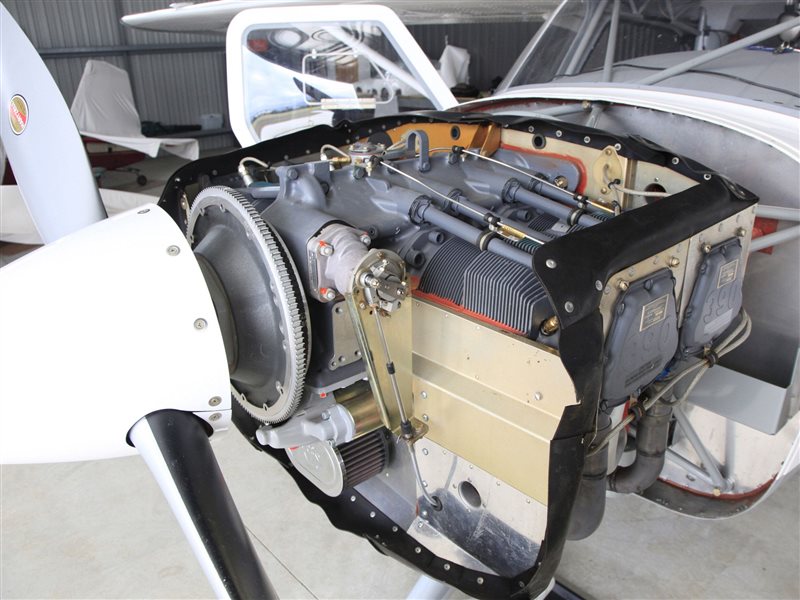

Engine Specifications

TSN 467 tach hours

Lycoming YI0-390-EXP Fuel injected engine rated at 210HP

Factory New September, 2011.

Precision Airmotive LLC Silver Hawk EX-5VA1 Fuel Injection Servo

GAMI Tuned injectors. Flow Matched Cylinders.

Stainless Steel Four into One, Tuned Exhaust by Airflow Performance.

Dual P-Mags Electronic Ignition System installed at 167 hours

Propeller: Hartzell constant speed 2-Blade 74" TSN 467 tach hours

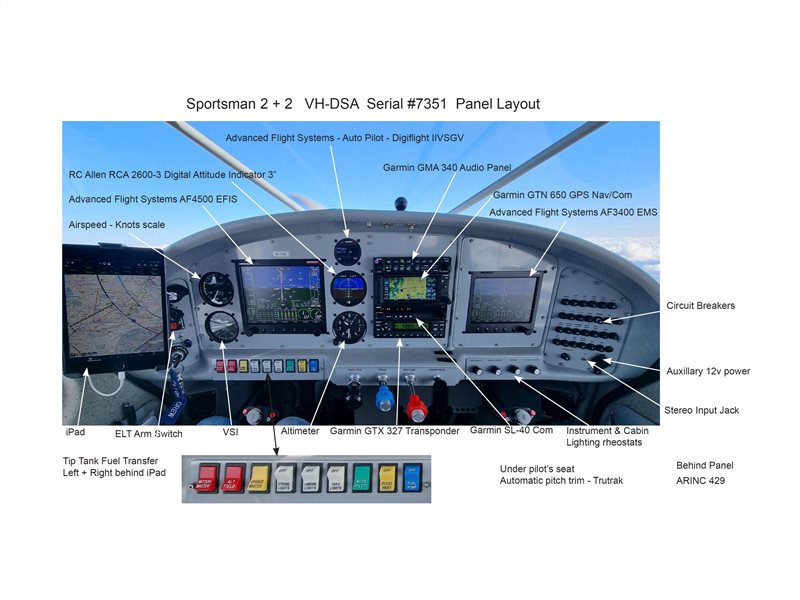

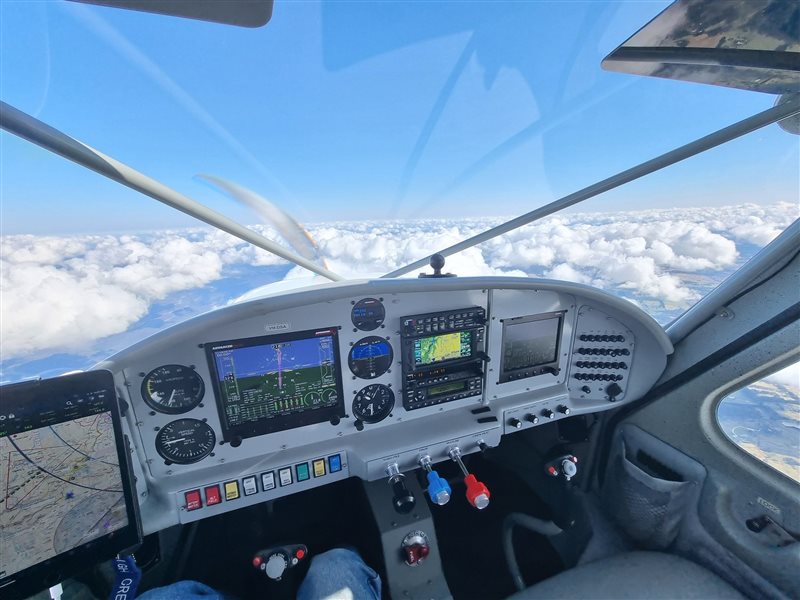

Avionics

IFR Avionics

Garmin GTN 650, IFR Certified GPS/NAV/COM 1

Garmin SL-40 - COM 2

Garmin GTX 327 Transponder

Garmin GMA 340 Audio Panel

RC Allen RCA 2600-3 Digital Attitude Indicator 3"

Advanced Flight Systems AF4500 EFIS

Advanced Flight Systems AF3400 EMS

EFIS Backup Battery System

Advance TruTrak - DigiFlight II- VSGV Autopilot, fully coupled with vertical and roll steering.

Flies coupled GPS and ILS approaches

Airspeed knots–Analogue backup

Vertical Speed Indicator–Analogue backup

Altimeter–Analogue backup

LED Wingtip Nav lights

LED Wingtip Strobes

Wingtip Mounted super bright HID Landing Lights

Heated Pitot

Two wing mounted vertical antennas for improved coms transmission and reception.

Dual Fighter Style, Multi-Function Stick Grips (PTT, Elevator/Aileron Trim, Radio Flip-Flop, Auto Pilot Disconnect)

4 seat headset outlets, with Pilot/Co-pilot/Pax Panel Powered (Lemo or Bose Style) plus standard non powered jacks

Backup lighting for – analogue Airspeed, Altimeter, and Vertical Speed and RC Allen RCA 2600-3 Digital Attitude Indicator

Artex ME-406 ELT (Rear mounted) with Panel Mounted Remote Control Panel

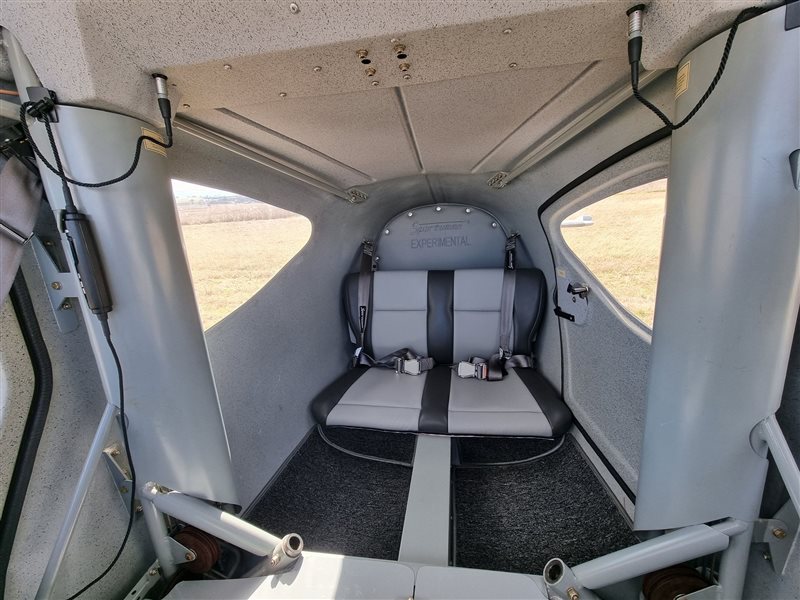

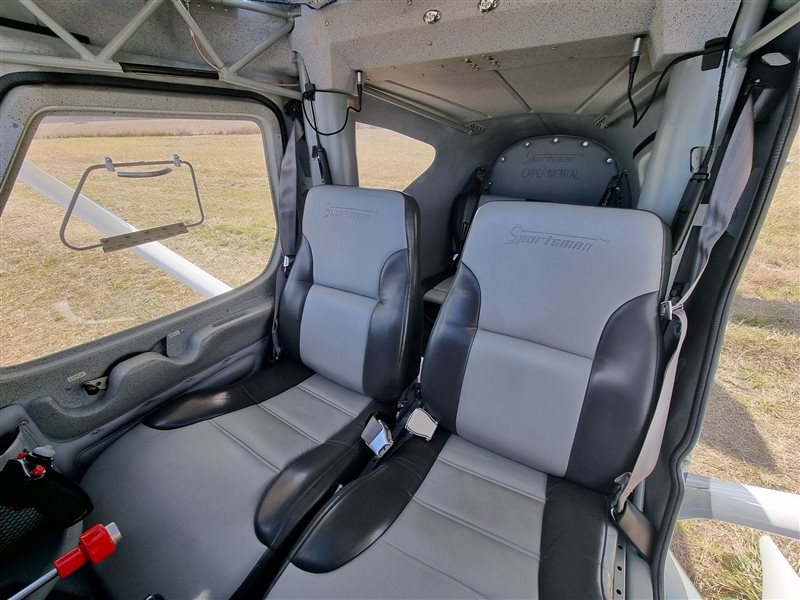

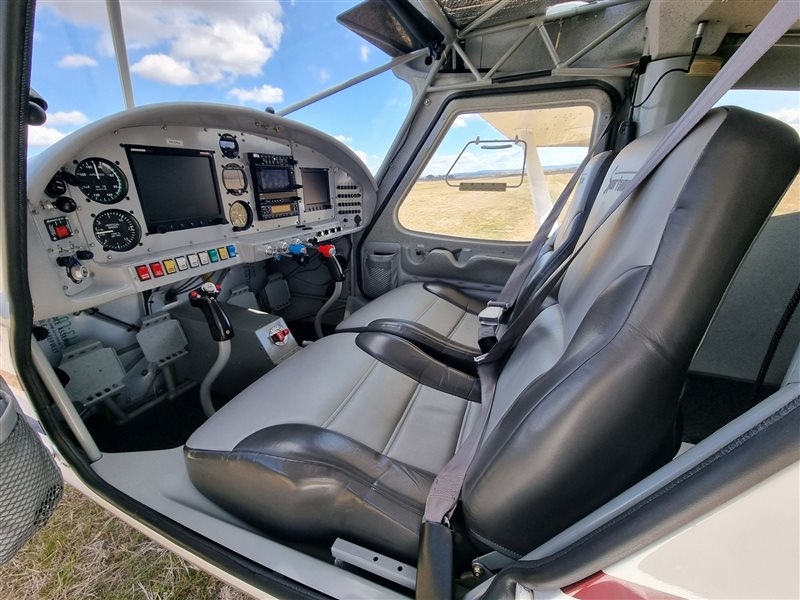

Interior

Photo windows in Pilot and Co-pilot side windows allow obstruction free photography and filming.

iPad Holder and wiring

Avionics Cooling Fans

LEMO Panel Powered Headset Jacks and Standard Jacks (Pilot/Co-Pilot)

Door pockets

Inertial Real Lap / sash seat belts - Pilot and Co-pilot

Lap / sash seat belts for two rear Pax

Cabin Heat/Windshield Defroster

2-inch Fresh Air Eye-Ball Vents

Matching Ignition/and door lock keys

Full dual controls

Two four-switch, fighter style stick grips: with PTT, Autopilot disengage, Com swap, with rocker hat switch for Elevator and Aileron Trim

Odyssey PC925 AGM Battery CCA (Cold Cranking Amps) 330 Amps. New April 2021. In rear fuselage for trike weight and balance.

Dual Grove Toe Brakes

Forward Facing Rear Seats

Carpeted Cargo Area

Two-Tone Grey Seat Covers

Lighted Electrical Switches on Rheostat Dimmers

Headset Hangars

Cabin Heater / Windshield Defroster

2-inch Fresh Air Eye-Ball Vents,

Andair Fuel System valve, (left-both-right)

Four 12Volt Auxiliary Power Outlets

Custom Overhead Cabin LED Lights

Sun Visors-Pilot and Co-Pilot

Pilot + Co-Pilot rear of seat map pockets

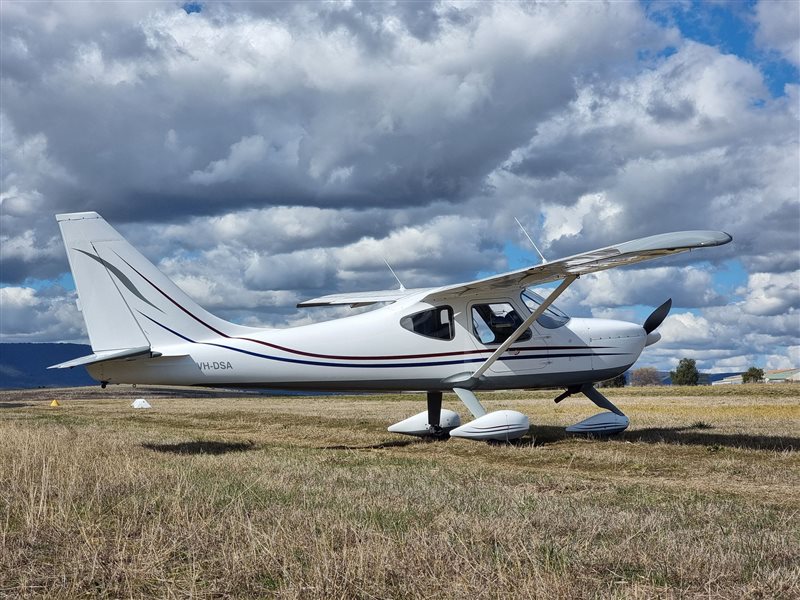

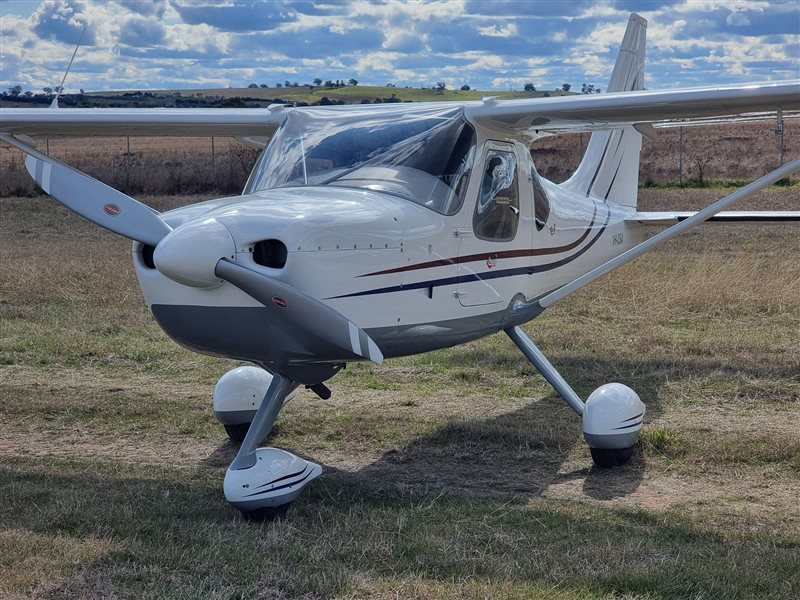

Exterior

Aircraft is currently configured with tricycle undercarriage and can easily be changed to tailwheel configuration using supplied tail wheel assembly.

Wheel fairings, Undercarriage Strut and Flap Track Speed Fairings

Matching Ignition, and door lock keys

Metal Stake tie down kit

Rudder Pedal Gust Lock

Bespoke Jack mount for main gear - Easy Wheel or Brake Change

Flush Fuel Caps

Firewall forward spare battery box / mount for tail wheel best balance as well as rear fuselage battery box for trike best balance.

Ground Power Plug receptacle in rear cabin

Charging port 12 volt for battery quick or trickle maintenance charger.

Interior sunscreens for all windows

Canopy Cover

Pitot cover

Cowl nacelle nose plugs/covers

Towbar (bespoke) with quick scissor type attach with 50mm towball attachment

Hand Towbar with quick scissor type attach

Vortex Generators horizontal stabilator

Rubber abrasion boots horizontal stabilator

Folding Wing Feature


Additional Features

First flight after final assembly and inspection in Australia – 12th February, 2012.

Last Annual Condition Inspection 10th December, 2024

Last Transponder, Pitot, Altimeter, Airspeed, Encoder test for IFR – 7th November 2024

No Damage History

*PLEASE NOTE: Aircraft specifications are subject to verification by the purchaser. It is up to you as the purchaser to conduct your due diligence. Unless given to you in writing by the seller, no warranties are implied or given. Aircraft or parts may be withdrawn from sale at any time. If the price does not contain the notation that it is the total price, the price may or may not include costs such as Stamp Duty, Transfer fees, GST and other State or Federal charges. Please confirm price, fees, charges and features with the seller of the Aircraft or Part.

Bingham Aviation Insurance

Click on the video below to watch.

Seller Information

Contact Name:Damon Smith
Seller Type:Private
Location:New South Wales, Australia
Mobile:0428 658 888
Listing ID:11924
