Avionics - Druck ADTS405 Aircraft Air Data Test Set

Avionics

$17,000

Incl GST
Avionics - Druck ADTS405 Aircraft Air Data Test Set
Part TypeAvionics
Make/CategoryGeneral
ConditionUsed Aircraft
Sale TypeFor Sale
CurrencyAU $
Price $17,000 Incl GST
LocationWestern Australia, Australia
Serial NumberADTS405
Description

The test set is surplus equipment from the Defence Department.

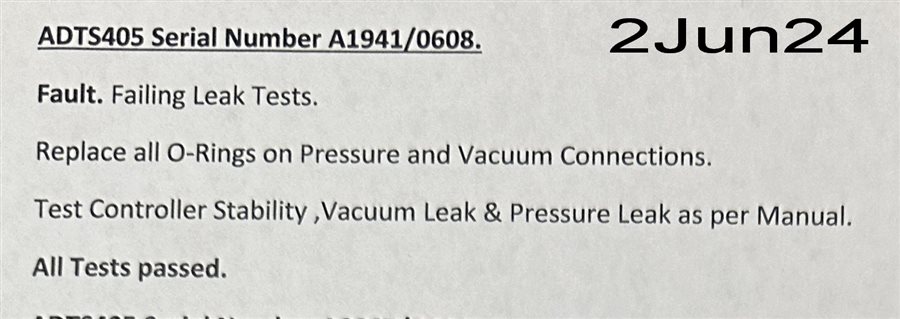

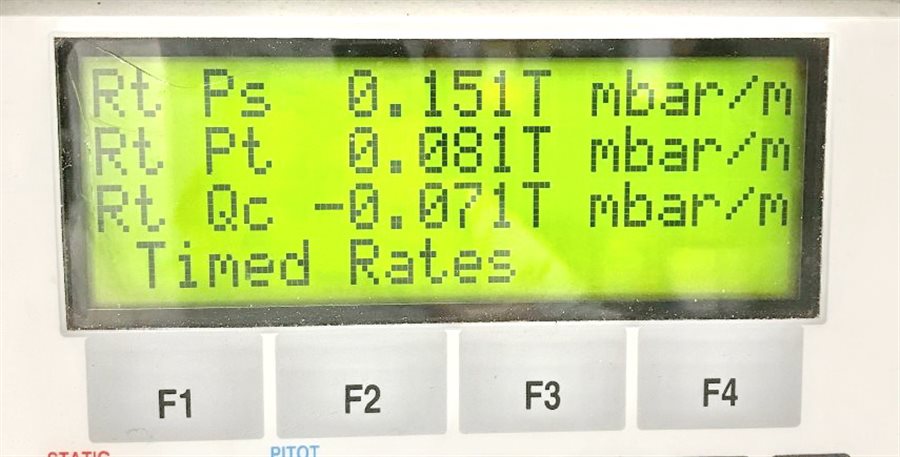

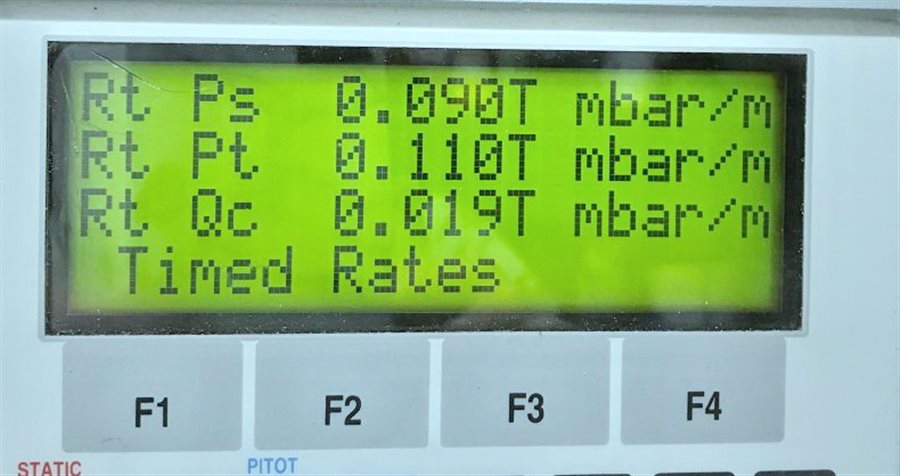

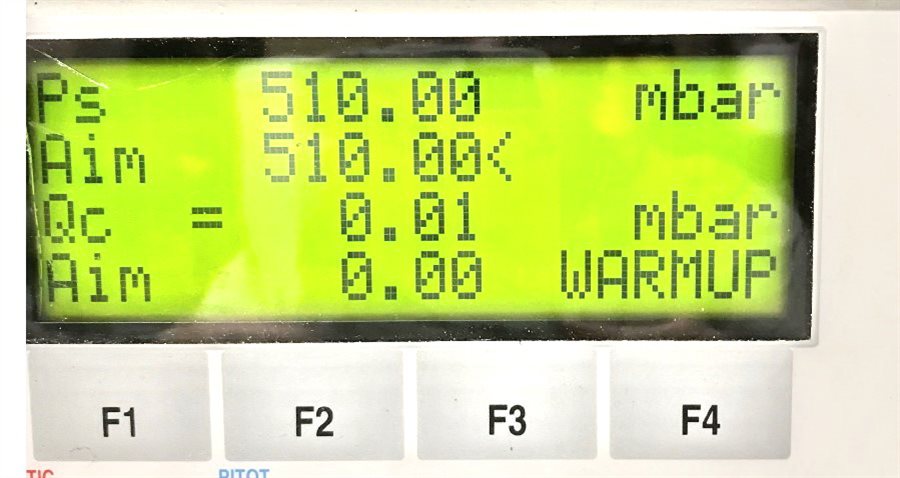

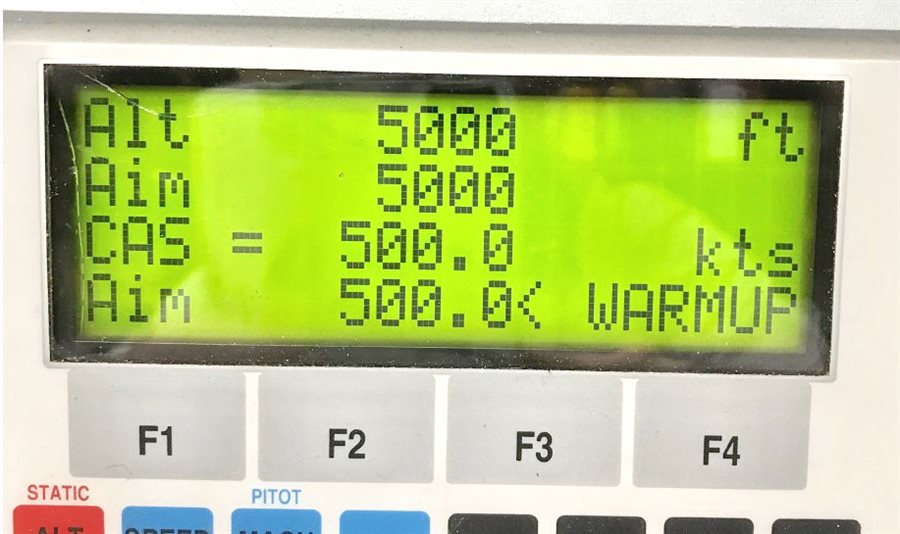

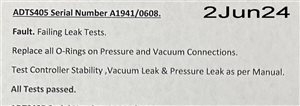

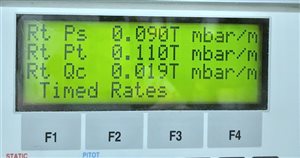

This unit has been serviced, checked and all O-rings replaced by our local calibration shop. Controller Stability, Vacuum & Pressure Leakage are all within Service Manual tolerances and the machine passes self-test – see photos

"The ADTS 405 is the latest in a series of reliable, high accuracy, air data test systems. The rugged, compact design has evolved as a result of GE Druck's continuous research and development, customer feedback and experience gained from manufacturing thousands of automatic pressure controllers. This has enabled performance, maintainability, and operational simplicity to be optimised. The ADTS 405 is a twin-channel Ps and Pt pressure control system used for the precision calibration/verification of aircraft pitot statics, compliant with RVSM (Reduced Vertical Separation Minima) requirements."

Specifications:

  • Condition: Used
  • Type: Pitot Static Air Data Test Set
  • Make: Druck
  • Model: ADTS405-2475-01
  • Serial: A1941/0608
  • NSN: 4920-66-138-3293
  • DOM: 2008

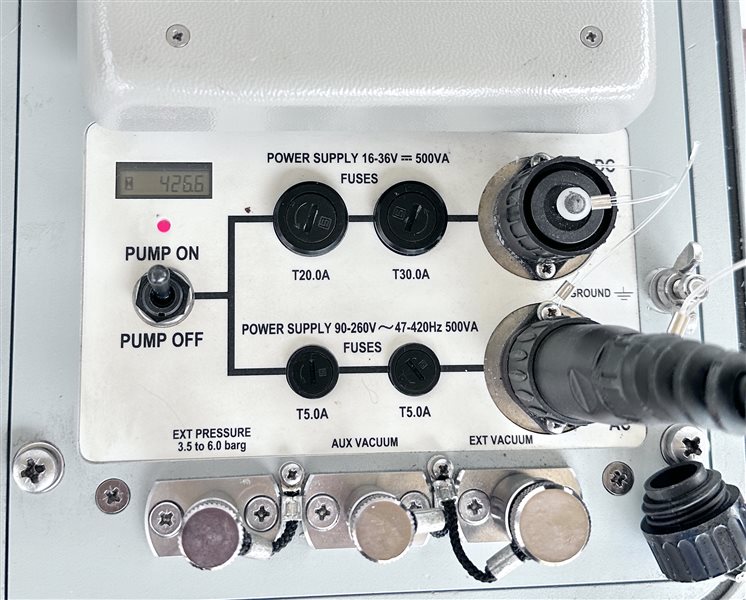

  • Pump Hours: 426
  • LastCal: 2019 (from Startup)
  • Fware: V6.01
  • Transducer: Solartron
  • Ps: 1355mb
  • Qc: 2500mar
  • Pt: 3500mb
  • Options: DC Input, Bench Case,Internal Pressure Vacuum Unit, IEEE-488
  • Altitude: -3,000′ to 80,000′ to 1′ resolution
  • Airspeed: 10kts to 850kts
  • ROC: 0′ to 6,000'/min to 1′ resolution
  • EPR: 0.1 to 10

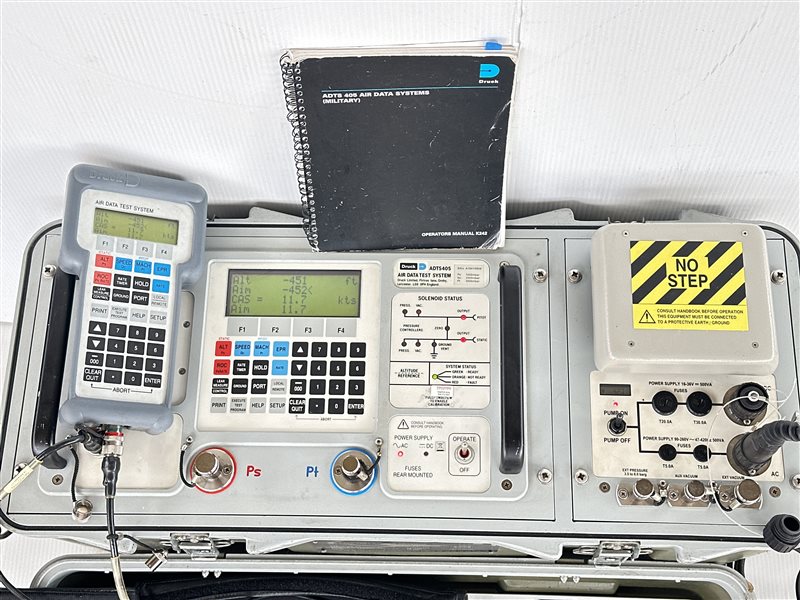

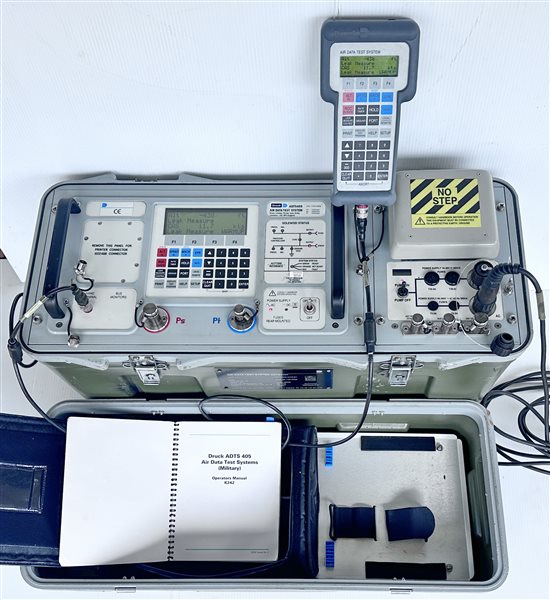

  • Accessories: AC Power Cable, Remote Control Cable
  • AC Input: 90 to 260VAC
  • DC Input: 28VDC
  • Dimensions: 762L x 320W x 480H
  • Weight: 35.5kg

The unit is sold with a 30 Day Warranty.

*PLEASE NOTE: Aircraft specifications are subject to verification by the purchaser. It is up to you as the purchaser to conduct your due diligence. Unless given to you in writing by the seller, no warranties are implied or given. Aircraft or parts may be withdrawn from sale at any time. If the price does not contain the notation that it is the total price, the price may or may not include costs such as Stamp Duty, Transfer fees, GST and other State or Federal charges. Please confirm price, fees, charges and features with the seller of the Aircraft or Part.

Bingham Insurance horizontal banner

Click on the video below to watch.

Seller Information

Contact Name:Nevan Pavlinovich
Seller Type:Private
Location:Western Australia, Australia
Mobile:0419916836
Listing ID:9634
