Ground Support Equipment

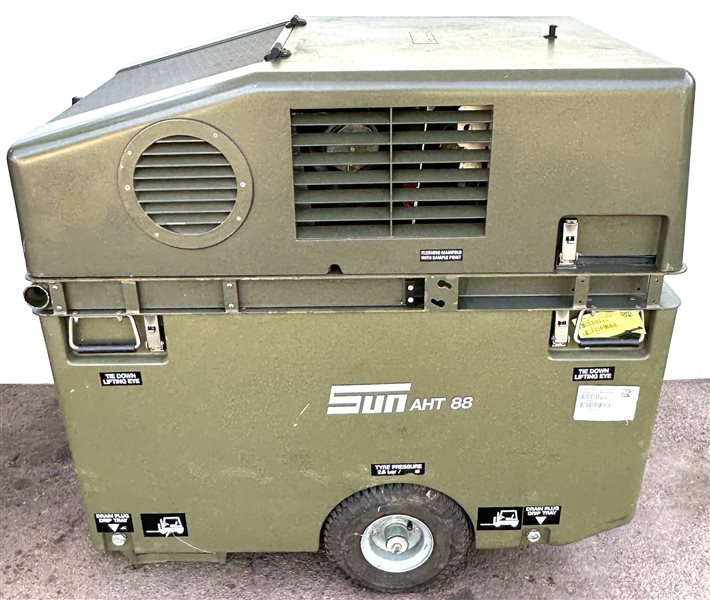

Ground Support Equipment - Sun Electric Systems AHT88A Hydraulic Test Pump

$15,000

Incl GST

back to search

Details

Ground Support Equipment - Sun Electric Systems AHT88A Hydraulic Test Pump
Part Type	Ground Support Equipment
Make/Category	General
Condition	Used Aircraft
Sale Type	For Sale
Currency	AU $
Price	$15,000 Incl GST
Location	Western Australia, Australia
Serial Number	AHT88A

Description
"The ... AHT88 are compact and solid built hydraulic testers provided with a single hydraulic system. This series is developed for small and medium-sized helicopters, including the Lynx and Hawk trainer/fighter. This equipment can be lifted and placed by 4 persons in a cargo space of a truck or landrover. Provide a source of hydraulic power to operate the aircraft's hydraulic systems and controls for functional and operational tests without the necessity of starting the aircraft engines. Test aircraft's hydraulic system for function checks, for indication of malfunctions, for flow and pressure checks, leakages, etc. Filter, de-aerate and dehydrate the aircraft's hydraulic fluid continuously during testing. Drain, flush and refill the aircraft's hydraulic systems." Specifications: Condition: Used Type: Axial Piston Variable Stroke Aircraft Hydraulic Power Supply Make: Sun Test Systems, SUn Electric Systems Series: AHT Model: AHT88A Serial: 013 Part: 940907,852083 NSN: 4920-17-200-8099 DOM: 2008 Total Time: 58 hours Flow: 0-24 LPM Press: 210bar at max flow (240bar at reduced) Reservoir: 14L Filtration: 2micron, 3micron Flow Control: Flow on Outlet, Pressure on Return Input: 11kW 20A 415VAC/440VAC, 32A Plug Cable: Electric 25m Suits: Medium Sized Helicopters Dimensions: housing - 48mm, Sensor - 54mm Accessories:Nil Packaging: Military Wooden Crate Standars: Fluid MIL-H-5606, MIL-H-83282 or MIL-H-87257 Weight: 240.0kg Replacement price on this unit is approximately AUD$160,000

Description

"The ... AHT88 are compact and solid built hydraulic testers provided with a single hydraulic system. This series is developed for small and medium-sized helicopters, including the Lynx and Hawk trainer/fighter. This equipment can be lifted and placed by 4 persons in a cargo space of a truck or landrover.

Provide a source of hydraulic power to operate the aircraft's hydraulic systems and controls for functional and operational tests without the necessity of starting the aircraft engines.
Test aircraft's hydraulic system for function checks, for indication of malfunctions, for flow and pressure checks, leakages, etc.
Filter, de-aerate and dehydrate the aircraft's hydraulic fluid continuously during testing.
Drain, flush and refill the aircraft's hydraulic systems."

Specifications:

Condition: Used
Type: Axial Piston Variable Stroke Aircraft Hydraulic Power Supply
Make: Sun Test Systems, SUn Electric Systems
Series: AHT
Model: AHT88A
Serial: 013
Part: 940907,852083
NSN: 4920-17-200-8099
DOM: 2008
Total Time: 58 hours
Flow: 0-24 LPM
Press: 210bar at max flow (240bar at reduced)
Reservoir: 14L
Filtration: 2micron, 3micron
Flow Control: Flow on Outlet, Pressure on Return
Input: 11kW 20A 415VAC/440VAC, 32A Plug
Cable: Electric 25m
Suits: Medium Sized Helicopters
Dimensions: housing - 48mm, Sensor - 54mm
Accessories:Nil
Packaging: Military Wooden Crate
Standars: Fluid MIL-H-5606, MIL-H-83282 or MIL-H-87257
Weight: 240.0kg

Replacement price on this unit is approximately AUD$160,000
