•Lycoming IO-540-AB1A5 Engine – 230 HP @2400 RPM

•McCauley Constant Speed, 3 Blade Metal Propeller

•Certified for 100LL & 100 Fuel

•Fuel Injection System

•Tubular Steel Engine Mount

•Dynafocal Rear Mount

•Engine Driven Vacuum Pump

•Automatic Alternate Engine Air

•Oil Cooler

•Rigid - Mounted Cowling

•Manual Cowl Flaps

•Induction Air Filter

•Full Flow Oil Filter

•Throttle Control

•Vernier Mixture Control

•Vernier Propeller Control

•Dual Ignition System, Shielded Magneto

•Engine Exhaust Muffler

•Propeller Governor

•Propeller Spinner, Polished

•Electric Starter

28 Volt, 95 Amp

•Battery, 24 Volt, 10.0 AH (1 hr rate), Manifold Type

•Standby Battery, 24 volt, 6.2 AH (1 hr rate), Sealed Type

•Alternator, 28 Volt, 95 Amp

•Standby Battery Controller

•Electrical Circuit Panel; Alternator/Battery Master Switch Split Avionics Master Switch, Circuit Breakers, Electrical, Switches, Electrical

•Electrical J-Box; Alternator Control Unit, Battery Current Sensor, Ground Service Receptacle, Starter Relay, Alternator Relay, Battery Relay, Ground Power Relay, Bus Circuit Protection

•Cabin Power Jack -12 Volt (fore & aft), 10 Amp

•Ammeters, Voltmeters, Vacuum, Manifold Pressure

•Oil Pressure & Temperature

•Tachometer – Hour Recorder

•Fuel Flow (GPH)

•LH/RH Fuel Qty

•CHT – Cylinder Head Temperature

•EGT – Exhaust Gas Temperature

•Standby Vacuum System

•Annunciation – Caution and Warning Alerts (PFD)

•Windshield Defroster – Pilot

•Carbon Monoxide Detector

•Ventilator, Adjustable (6 Places)

•Heating System, Shrouded Muffler with Firewall

•Insulation & Sound Proofing

•Hydraulic Brakes, Tow-Operated

•AP Disconnect

•Stainless Steel Control Cables

•Dual Flight Controls – Aileron/ Elevator/ Rudder

•Leather Wrap Control Wheels, All Purpose Pilot/ Copilot

•Pilot Control Switches: Pitch Trim, AP Disconnect, Control Wheel Steering Button

•Go-Around Switch

•Elevator Trim – Manual/ Electric

•Rudder Trim – Manual

•Electrical Preselect – Flaps

•Steerable Nose Wheel

•Aileron and Elevator Control Lock

•Electric Auxiliary Fuel Pump

•Engine Driven Fuel Pump

•Integral Wet Wing Fuel Tanks, 87 Gal. Useable

•Fuel Selector Valve, Left/ Both/ Right/ Off

•Fuel Strainer, Incorporated with Fuselage Quick Drain

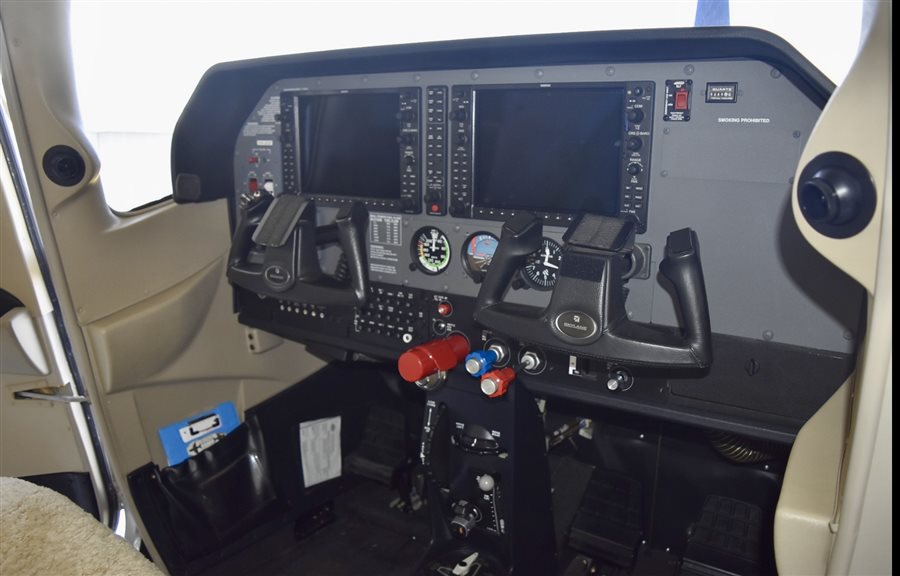

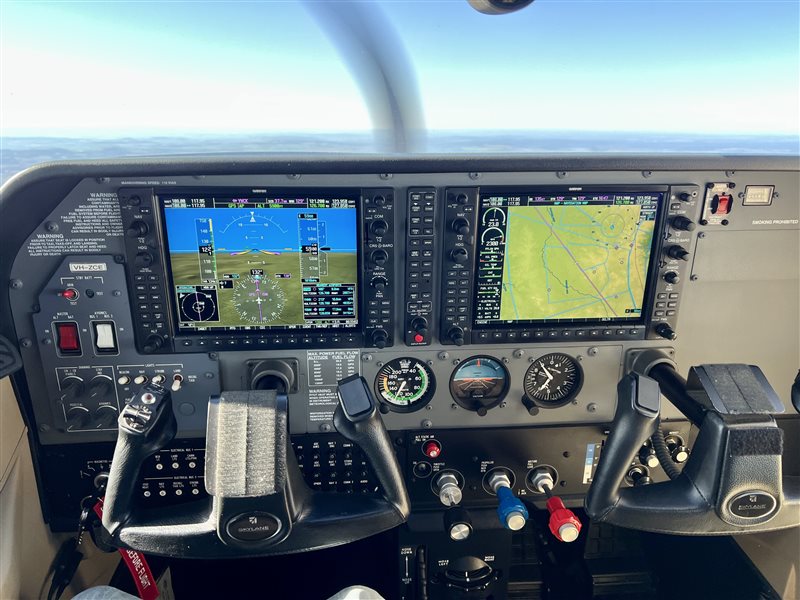

•Garmin G1000 III Integrated Electronic Flight Information System

•Garmin GDU1040 PFD/GIA63 16WATT COM/NAV/GPS/ILS

•Garmin GDU1040 MFD/GIA63 16 WATT COM/NAV/GPS/ ILS/ Terrain/ Synthetic Vision

•Garmin GRS77 AHARS, Attitude, Heading

•Garmin GRU44 Tri Axial Magnetometer

•Garmin GDC74A Air Data Computer, ALT, TAS, IAS, VSI, & OAT Probe

•Garmin GEA71 Engine Monitor and Alert, MP, RPM, F/Flow & Quantity, CHT, EGT

•Garmin GTX33W ES ADSB Transponder, GTS800 ADSB Traffic

•Garmin WX500 Stormscope Sensor

•Garmin GMA 1347 Audio, Digital 4 Place Intercom

•GFC-700 Autopilot; Go-Around Switch, Electric Trim, A/P Disconnect, Control Wheel Steering Button

•Standby Airspeed

•Attitude & Altimeter

•UHF Comms

•Electric Elevator Trim

•GTX-33 Transponder-Mode S w-TIS

•Garmin SafeTaxi & FliteCharts

•GIA-63W NAV/COM/GPS/WAAS with GS #1

•GIA-63W NAV/COM/GPS/WAAS with GS #2

•Electronic Checklists

•ME406 Two Frequency Emergency Locator Transmitter

•Emergency Locator Transmitter Remote Mounted Switch

•Backup Attitude Gyro, Altimeter and Airspeed Indicator

•Control Wheel Push-To-Talk Switch-Pilot/Copilot

•Mic & Phone Jacks-Pilot/Copilot/Passengers

•Auxiliary Stereo Input Jack

•Antennas: Marker Beacon Antenna, Transponder Antenna, VHF/GPS Antenna (2), NAV Antenna, Emergency Locator Transmitter External Antenna

•Pitot System – Heated

•Static System

•Compass

•Handheld Microphone

•Alternate Static Source

•Cabin Heater

• Amsafe Inflatable Restraint Belts

•Height (maximum) – 1.23m

•Width (trim to trim) – 1.07m

•Length (firewall to aft baggage bulkhead) – 3.40m

•Door Panel, Upper Sidewall Accent - Beige Woven Vinyl

•Door, Lower Sidewall, Kick Panel - Black Kydex

•Metal Instrument Panel, with Removable Stby Instr. Subpanel

•Carpeting in Passenger Area

•Metal Instrument Panel, with Removable Subpanels

•Pilot/ Copilot Amsafe Inflatable Seat Belts & Shoulder Harness STC, Inertia reel

•Map/Glove Compartment

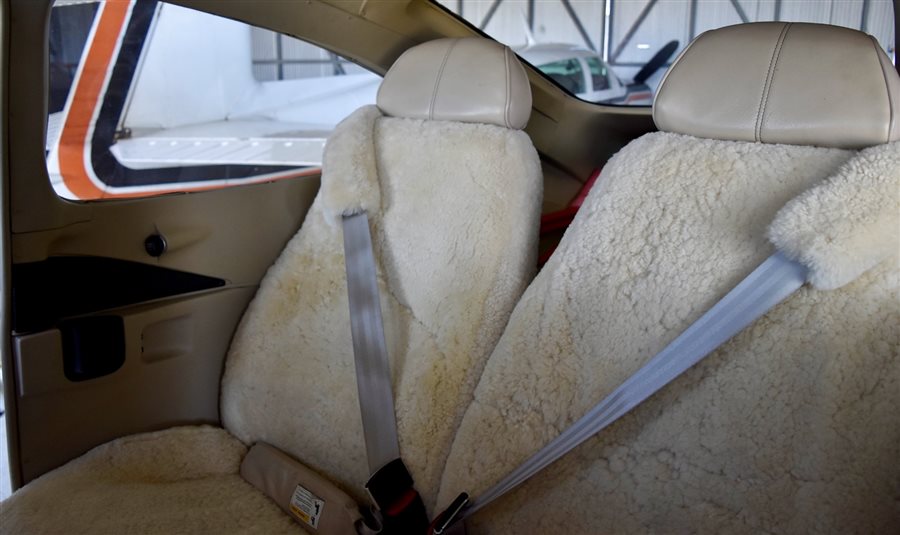

•Rear Seat Bench with split individual reclining seatback, Amsafe Inflatable Seat Belts & Shoulder Harness STC, Inertia Reel.

•Baggage Net

•Radio Call Plate

•Map & Storage Pockets

•Cabin Door Scuff Plates

•Passenger Cup Holders

•Passenger Side Wall

•Pilot & Copilot Door Armrests

•Pilot and Copilot Seats - Adjustable Fore and Aft

Reclining Backs - Vertical Adjustment

•Jepp Manual Storage Console with Cup Holders

•Approach Plate Holder on Pilot Control Wheel

•Pilot's Check List

•Pilot's Operating Handbook

•LED Pilot/Copilot Cabin Overhead LED Lights

•Beacon, Strobe, Fuel Pump, Pitot Heat

•LED Passenger Overhead Light

•12 Volt Cabin Power

•Interior Lights Dimming Controls

•Standby Battery Switch

•Map Light, Pilot Control Wheel

•Circuit Breakers

•Sub-Panel Lighting (LED Backlighted)

Flaps, Throttle, Mixture, Propeller, Cowl Flap, Environmental Controls (Air and Heat)

•Switch Panel Lighting (LED Backlighted) - Avionics and Master Switches, Dimming Rheostats, Landing, Taxi and Nav Switches, Beacon, Strobe, Fuel Pump, Pitot Heat, 12 Volt Cabin Power, Standby Battery Switch, Circuit Breakers, Ignition / Start Switch

•LCD Lighted Glass Panel Displays: Electronic Flight Instruments, Electronic Avionics Instruments, Electronic Engine Instruments

•Audio Panel Bezel (Backlighted)

•Backup Attitude Gyro, Altimeter and Airspeed Indica-tor Internally Lighted

•Radio Call Plate (Backlighted)

•Compass Internally Lighted

•Rosen Pilot/ Co-Pilot Sun visors

•Warm Beige Luxor II Leather Seating Surface

•Epoxy Corrosion Proofing, All Structure

•LH Door, Pilot with Hinged Window, Lock and Key

•RH Door, Copilot with Hinged Window

•LH Baggage Door, with Lock and Key

•Rear Window

•All Windows Tinted

•Gear Jack Pads

•Fixed Landing Gear

•Main and Nose Gear Fairings

•White Polyurethane Exterior Paint

•Refueling Steps and Handles, Wing Struts and Fuselage

•Fixed Cabin Entrance Steps

•Tie Down Rings, LH/RH Wing & Tail

•Tube Type Tires; Nose – 5.00 X 5 / Mains – 6.00 X 6

•Conical Camber Wing Tip

•Strut Braced, Camber Lift Wings

•Static Wicks

•LED Ground Recognition Beacon - Vertical Tail

•LED Navigation, LH/RH Wing Tip & Vertical Tail

•Wing Tip Navigation Light Detectors, LH/RH

•Wing Tip Strobe, LH/RH

•Dual Wing LED Landing and Taxi Lights with integrated Pulse Recognition Technology

•Underwing Courtesy, LH and RH Wing

Aircraft Always Hangered

10yr Service Recently Completed

Wing Vortices Kit

Airplane Custom Covers (Brand New)

Maximum Take-off Weight – 1,406 KG

Total Fuel Capacity – 348.2 L

Service Ceiling – 18,100 ft

Take-off Distance S.L (Ground Roll) – 795 ft

Take-off Distance S.L (To clear 50 ft. Obstacle) – 1,514 ft

Maximum Climb Rate S.L – 924 fpm

Maximum Speed S.L – 150 kts

Maximum Range and Endurance – 930 nm / 7.6 hrs

Cruise Speed (80% pwr at 7,000 ft) – 145 kts

Cruise Range and Endurance (80% pwr at 7,000 ft) – 773 nm / 5.40 hrs

Landing Distance (Ground Roll) – 590 ft

Landing Distance (To Clear 50 ft. Obstacle) – 1,350 ft

Maximum Useful Load – 518 KG

Baggage Allowance – 91 KG
